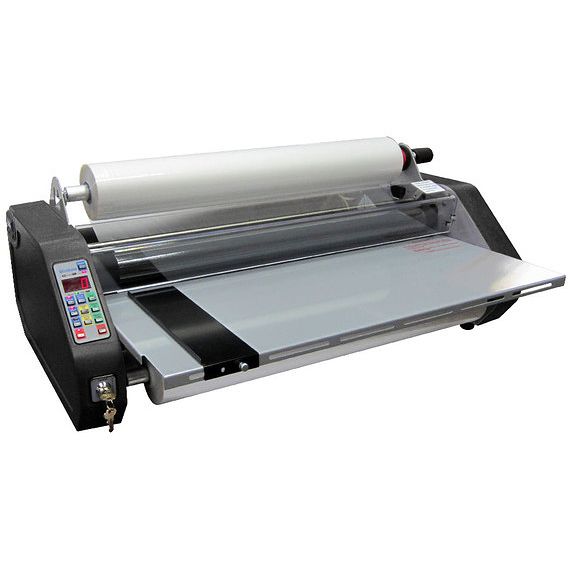

D&K MiniKote Pro 27" Roll Laminator
- 0
- 1
- 2
- 3
Overview
• Capable of Mounting up to 1/4" thick boards
• Variable Speed & Heat Settings
• 1" Core Films
• 9.5 Feet / Minute Maximum Speed
• Safety Key Lock-Out
• Counter to Track Film Usage
• Up to 10 Mil Film Compatible
• Made in the USA
Specifications
Item # | 04DK27MINIKPR |
---|---|
Manufacturer | D&K |
Manufacturer Part Number | 201800 |
Compatible Supplies & Accessories | Thermal Lamination Film (Up to 10 Mil with 1" Core) |
Power Voltage | 120V AC 60Hz 1400w |
Dimensions | 34" W x 20" D x 15" H |
Certifications | UL |
Manufacturer's Warranty | 1 Year Limited |
Country of Manufacture | USA |
Size | 27" |
Color | Gray |
Operation | Electric |
Double-Sided Lamination | Yes |
Single-Sided Lamination | No |
Thermal Laminating | Yes |
Digital Laminating (Low-Temp) | Yes |
Cold Laminating | No |
Speed | 9.5' / Minute (Feet per Minute) |
Heating Type | Silicone Rollers |
Warm-Up Time | 20 Minutes |
Maximum Mil Thickness | 10 Mil |
Temperature Range | 150° - 325° F (66° - 163° C) |
Adjustable Temp | Yes |
Core Size | 1" Core |
Reverse Function | Yes |
Capable of Mounting | Yes |
Maximum Mounting Thickness | 1/4" Boards |
Capable of Foiling | No |
Integrated Cutter | No |
Liner Take-Up | No |
Digital Control Panel | Digital Display Shows Temperature, Speed and Usage Counter |
Counter | Yes |
Shipping Weight (lbs) | 86 |
Product Weight (lbs) | 66 |
Description
With the MiniKote Pro from D&K, you get a premium-quality lamination machine that offers professional output in speed, versatility, and finish. Compatible with 1" core thermal laminates in the full range of thicknesses, this powerful machine can handle up to 27" wide lamination as well as mounting of foam boards up to 1/4" thick. It features adjustable speed and heat settings, allowing you to customize each job to the specific materials being used, helping you to achieve the most crystal-clear finish possible. With a key switch lockout and clear safety shield, you can ensure only authorized users have access to the laminator, and that they are safe while doing so. A digital readout keeps your user informed of the temperature, speed, and usage counter; this counter can help you keep track of the amount of laminate used, helping you to manage your job progress and restock needs.
Key Features:
- Made in the USA
- Variable speed
- Variable heat
- Counter with reset lets you track film usage
- Accepts 10 mil film
- Keyswitch to prevent unauthorized use of laminator
- Safety shield prevents accidental contact with heated areas of machine
- Hand-held slitter that is conveniently stored on the machine (right side)
- Adjustable feed guide for precise control of lamination
